Gbiota beds were first developed in the early 2010s to deal with drought and dry conditions. After years of experimentation, the system has evolved to manage not only moisture efficiency but also extreme weather, soil biology, and food resilience. This update explains how the bed design has progressed and why it matters today.
You may like to begin by watching a short video I made in 2020:
https://youtu.be/xccG5Zq3CNQ
The challenge has shifted: from drought-proofing beds to building systems that survive intense rain, flooding, and massive shifts in climate patterns.
Sump and Pump System — The Original Design
The early Gbiota beds were simple: dig a trench, add a plastic liner, and place Ag pipe in the base. A raised “leaky dam” at the end forced water upward through the perforations in the pipe, distributing moisture through the soil.
Water was pumped from a sump, over the leaky dam, and back into the sump in a continuous loop. When the pump switched off, water drained back naturally.
In my early beds I used a plastic liner. Later I experimented with simple soil compaction instead, which worked surprisingly well—but results will vary depending on your soil type and water access.
Scheduling irrigation was easy: a simple timer controlled the pump. Multiple beds could share a manifold, with water returning to a common sump.
Manual System — Simplifying the Design
Many people felt pumps and timers were too complex, so I developed a fully manual version of the bed.
The leaky dam was replaced with a simple inspection tube. You insert a hose into the Ag pipe and watch the water rise inside the inspection tube until it reaches the correct height.
I later discovered it was easier to lift the pipe end to the surface. This makes it simple to flush and clean with a hose. Raising the pipe is essential to create upward water flow into the soil.
The manual system is practical and effective—but it requires human attention. The gardener must check moisture levels and stop watering at the right moment.
Drought… Then Floods
These beds performed brilliantly for years during drought. But then came a series of extreme rain events—true “monster floods.”
My block sits on a gentle slope. Water from neighbouring properties upstream accumulated and swept across my land as a mass of moving floodwater, saturating everything for days.
This caused significant plant damage and encouraged anaerobic microbes to flourish—exactly what we do not want in a Gbiota bed.
The solution was to modify the landscape itself: digging trenches around the beds to divert external floodwater.
Converting to Raised Beds — A New Approach
Once external water was redirected, the next challenge was rain falling directly onto the beds.

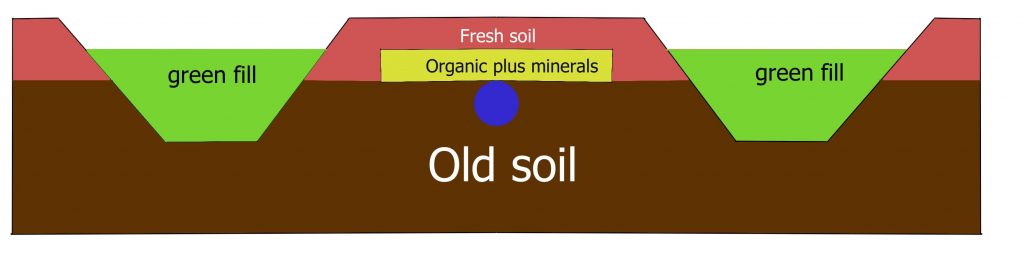

The first step was to dig trenches alongside the beds, connected below parent soil level to allow excess water to drain away.
The excavated soil was used to raise the beds, improving drainage and resilience.
In some beds I placed the Ag pipe directly on the surface and covered it with a dome of organic waste, manure, and minerals. In others, the pipe sat in a shallow trench surrounded by soil.
I originally used the trenches as pathways, but this was awkward, so I filled them with grass clippings. This:
- Improved walking comfort
- Stopped weeds growing in the trenches
- Still allowed effective drainage
At first, water leaked from pipes placed directly on the soil. Filling the trenches with organic waste helped absorb runoff, and over time worms converted the material into vermicast, reducing leakage naturally.
Experience suggests surrounding the Ag pipe with soil gives the most reliable result.
Testing the New System
Testing flood resistance takes patience—you have to wait for actual floods.
We’ve had one substantial downpour (120mm) since upgrading the beds. There were no signs of waterlogging, so I’m confident the system will withstand far heavier rains. But real proof will arrive with the summer cyclones.
Beds, Boxes, and Soil
Freshly picked food is one of the keys to health and wellbeing. Gbiota beds make this possible, but not everyone has land or gardening experience.
That’s where the bed–box system comes in. Gardeners create high-microbe Wickimix soil in beds, then fill Gbiota boxes so apartment dwellers can grow gut-health food on balconies or indoors.
Wickimix is made by adding food waste, garden material, manure, and mineral-rich rock dust to a trench just above the Ag pipe.
Rock dusts add essential minerals such as magnesium and zinc—both widely deficient in modern diets.
Inoculants introduce the soil microbes needed to kickstart biological activity. Once established, the microbial community continues growing indefinitely.
The key to good Wickimix is moisture: not too wet, not too dry. The Ag pipe provides controlled bottom-up watering so moisture stays in the ideal zone for microbial life.
Goldilocks moisture—not saturated, not dry—is what makes Gbiota beds uniquely suited for breeding beneficial microbes.
Latest Methods
I now use the side trenches to grow Wickimix. I fill them with organic waste, add manure and mineral rock dust, and cover with soil or recycled Wickimix.
This layer becomes an active composting zone. Grass clippings, food waste, and garden prunings all break down with the help of worms.
Worms are essential—their castings are packed with beneficial microbes that ultimately feed our gut ecosystem.
